LITE DUTY

BENECOR® LITE DUTY-SERIES DEF DISPENSING & STORAGE SYSTEMS DELIVER PROVEN PERFORMANCE AND ECONOMICAL VALUE FOR INDOOR & OUTDOOR DEF DISPENSING & STORAGE


ECONOMICAL SOLUTIONS FOR THE FLEET CUSTOMER

Our systems are purpose-built to deliver a rugged, cost-effective solution for DEF storage and dispensing across fleet environment. Engineered with economy in mind, they provide reliable performance in all conditions. Because DEF freezes at 12°F (-11°C), we offer an optional Cold-Weather package designed to protect systems integrity and ensure dependable operation in the hardest cold weather conditions.


ISLAND-FRIENDLY

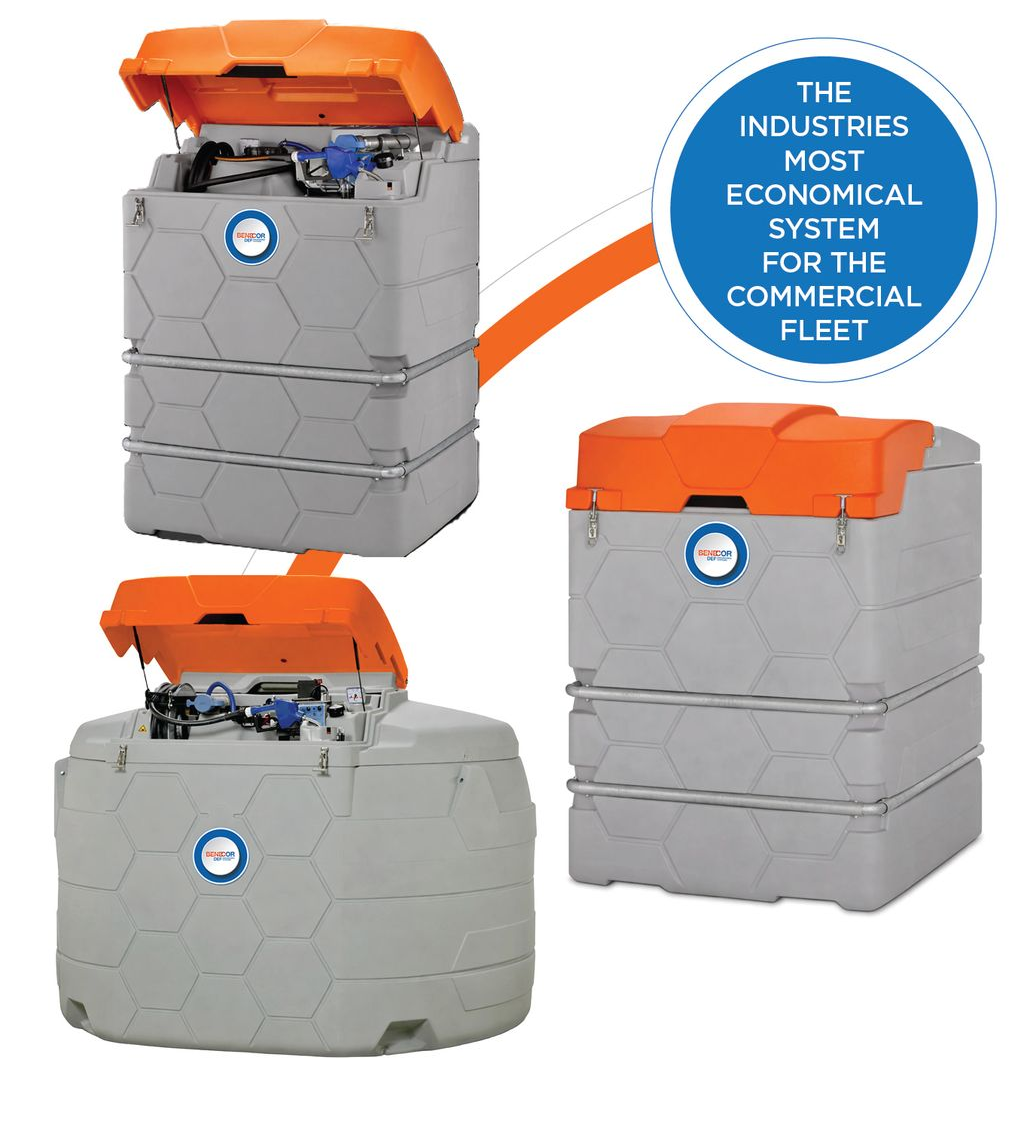

Our 400 & 600 gallon Lite Duty-Series DEF Dispensing and Storage systems are designed to fit on a standard 4’ fueling island.


TURNKEY — NOTHING IS FASTER OR EASIER

Our simple turnkey installation BENECOR® PLUG & PUMP design that will have you dispensing DEF fast. Just place the system to your pre-determined site, hook-up electricity, fill with the DEF and start pumping.


RELIABLE & COST EFFECTIVE

Our double-wall HDPE rotationally molded units are designed for dependable operation and easy serviceability, while minimizing upfront investing and total cost of ownership. Paired with proven BENECOR components, Lite Duty-Series DEF Dispensing & Storage Systems deliver consistent performance and strong value—making them a smart, budget-driven choice for fleet customers.


APPLICATION FLEXIBILITY

The Lite Duty-Series DEF Dispensing & Storage Systems are available in multiple tank capacities to meet varying fleet requirements. Optional cold-weather packages ensure reliable operation in low temperatures, while AC and DC power configurations provide compatibility with electrical infrastructure or “field” installations. Customizable options allow fleets to optimize performance, efficiency, and total cost of ownership.


STANDARDS / APPROVALS

General Construction Approval Z-40321-510

Systems meet the ISO 22241-3 & 4 standards for the dispensing and storage of DEF.

Size Dimensions Weights

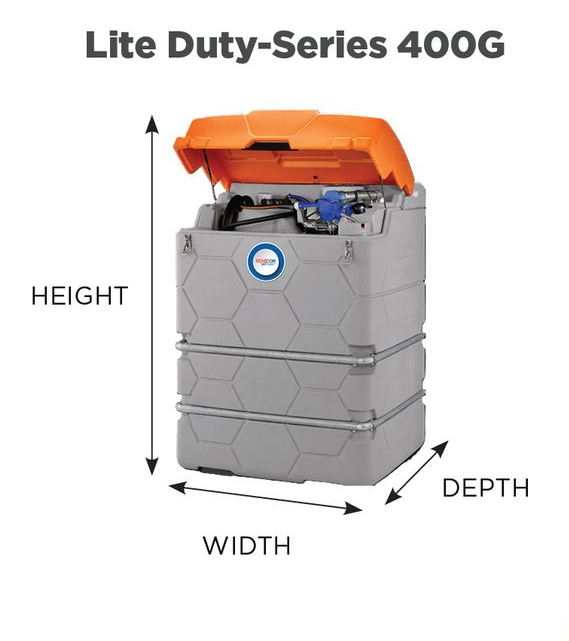

400 G 47.25”W x 70.9”H x 45.3”D 500 lbs
660 G 47.25”W x 70.9”H x 70.9”D 562 lbs

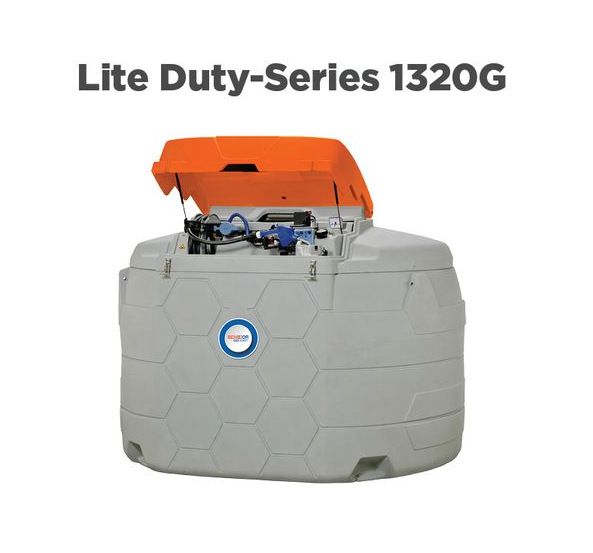

1320 G 94.5”W x 72.8”H x 89.8”D 800 lbs
A large white machine with an attached screen and card reader, showing a close-up view of the card reader.

LITE DUTY STANDARD FEATURES


DISPENSER

  • 8 GPM 120V Pump
  • BENECOR® Automatic DEF Stainless Steel Nozzle
  • 25’ Hose Reel & All Necessary Hose Hardware
  • Integrated Nozzle Holder
  • Flow Meter


ENCLOSURE

  • Pre-Wired & Pre-Piped for Simple Fast & Easy Installation
  • Hinged, Lockable Lid
  • Environmentally Safe - 110% Secondary Containment
  • Rotary Molded Double Wall Construction
  • Optical Bund Alarm
  • Liquid Level Gauge
  • Forklift Accessible (400G & 660G)
  • 2” Stainless Steel Dry-Break Fill Port


LITE DUTY-SERIES OPTIONAL FEATURES INCLUDE:

  • BENECOR® DEF Flow Meter Face Mounted Display Meter & In-Line Pulse Meter
  • Cold Weather Lite Duty-Series Option: Includes 600W of Thermostat Controlled Heat Trace to Prevent the DEF from Freezing
  • Optional 12VDC Pump (Not available for cold weather units)
